Epson I3200-U1 UV Printhead - I3200-U1

Epson I3200-U1 UV Printhead - I3200-U1

Regular price
£989.99
Sale price
£989.99
Regular price
Sold out
Unit price
per

Ask through the livechat for more information

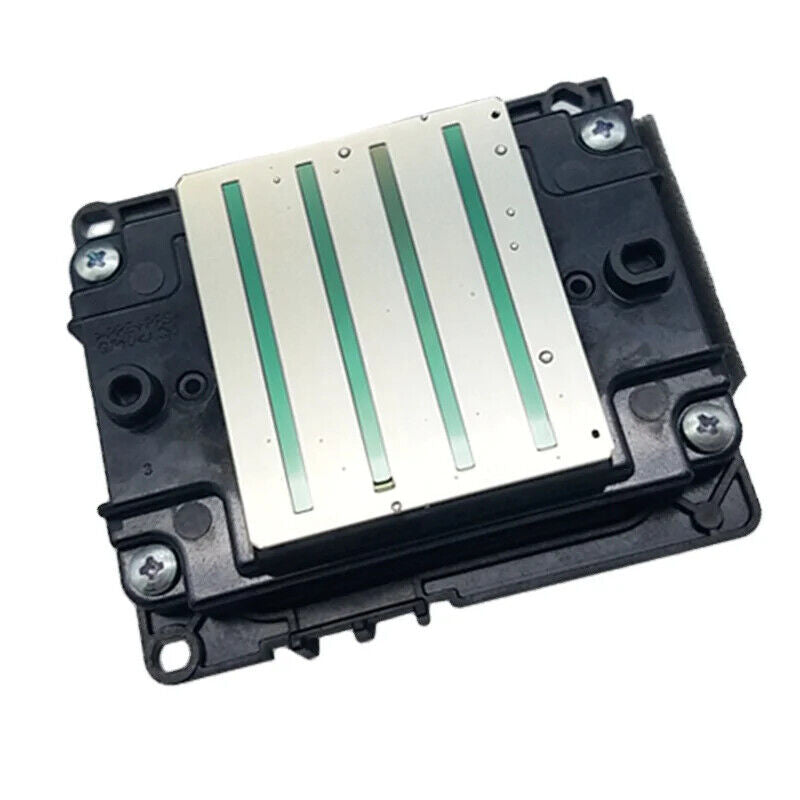

The Epson I3200-U1 UV is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for UV inks. It is unlocked.

The Epson I3200-U1 UV  is a cost-effective 1.33inch-wide MEMs head series providing high productivity and high image quality with 600dpi high-density resolution. This printhead is suitable for UV inks. It is unlocked.

Specifications :

  • Ink Type : UV
  • Type : PrecisionCore MicroTFP printhead
  • Width x Depth x Height: 69.1 x 59.4 x 35.6 mm
  • Weight : 82g
  • Number of nozzle : 3200
  • Nozzle pitch/nozzle row : 1/300 inch
  • Nozzle rows: 8 rows
  • Nozzle Resolution : 300 noi/row 600 npi/2 rows
  • Max. number of colour inks : 4 colours
  • Effective print width : 33.8 mm (1.33 inches)
  • Droplet ejection performance :
    Binary : 5 plat 43.2 kHz
    3 levels grey scale : 6, 12.5 pl at 21.6 kHz
    4 levels grey scale 3.8, 6.2, 9.3 pl at 21.6 kHz
  • Viscosity range : 5-7 mPa·s
  • This printhead carries a manufacturer warranty.
  • Country of origin : Japan
