UJF-3042 GEN4 7PL Printhead

UJF-3042 GEN4 7PL Printhead

Regular price
Sale price
Regular price
Sold out
Unit price

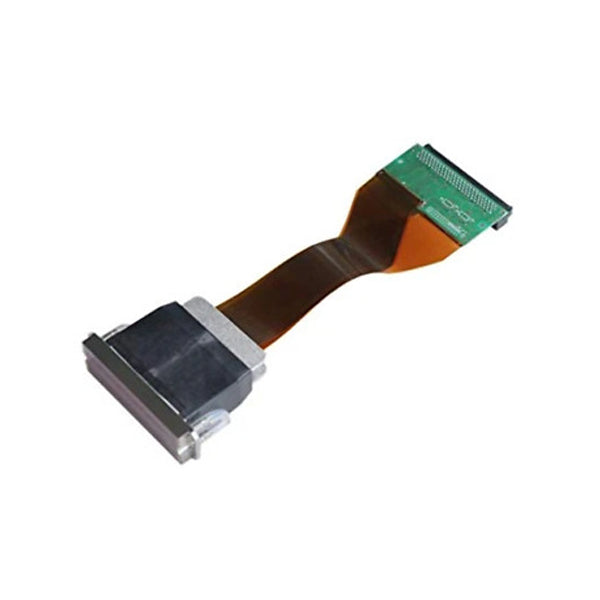

This Ricoh GEN4 (MH2420), 384 channels, 30 kHz, 7 picoliter, greyscale printhead is suitable for Mimaki UJF-3042 printers. This printhead has an integrated heater and thermistor.

Technical Specifications

  • Size: 63 x 63 x 16,2 mm (excluding cables)
  • Head Materials: SST, Ni and Epoxy Adhesive
  • Nozzle Plate Surface: Non-coated SST
  • Number of Nozzles: 2 x 192 nozzles
  • Nozzle Spacing: 0,1693 mm
  • Piezo Type: D33 Stacked PZT
  • Temperature Control: Integrated Heater and Thermistor
  • Operator Temperature range: Up to 60° C
  • Native Drop Volume: 7 pl
  • Drop Volume Range: 5-25 pl with greyscale
  • Jetting Frequency: Up to 30 kHZ
  • Life: 100 billion actuations per nozzle

Printer Compatibility:

Ampla Digital Targa XT 1804
Ampla Digital Targa XT 1808

Ampla Digital Targa XT 1816
Ampla Digital Targa XT 3204

Ampla Digital Targa XT 3208
Ampla Digital Targa XT 3216

Mimaki UJF-3042
Mimaki UJF-3042FX

Mimaki UJF-3042HG Mimaki UJF-6042
