RICOH GEN5 PRINTHEAD UV/SOLVENT- MH5420

RICOH GEN5 PRINTHEAD UV/SOLVENT- MH5420

Regular price
£1,350.00
Sale price
£1,350.00
Regular price
Sold out
Unit price
per

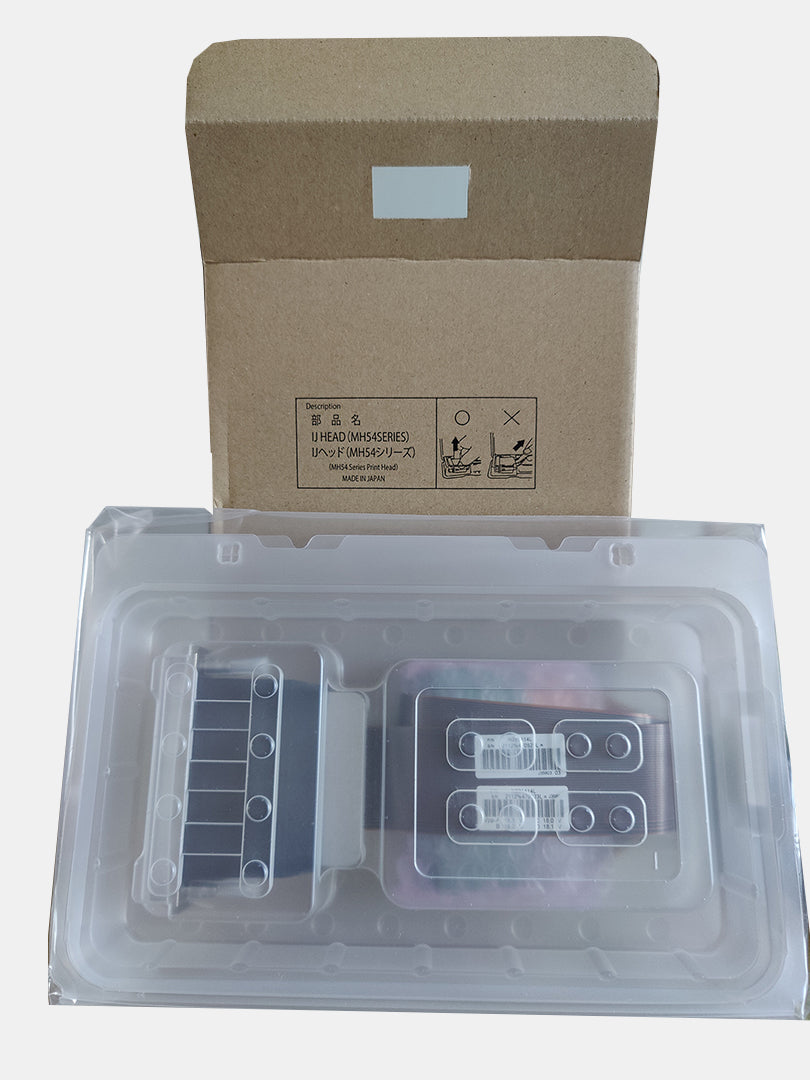

Ricoh MH5420 GEN5 UV Printhead (500mm) - N221414L

This Ricoh GEN5 UV printhead with a total length of 500mm is suitable for a range of UV and solvent printers.

This GEN5 UV printhead is suitable for a range of UV and solvent printers. It supports up to four colours and has a total of 1.280 nozzles. It is built with longevity and robustness in mind and used in the latest industrial inkjet printers. This is Ricoh original printhead part (number MH5420) and it is covered by a manufacturer warranty. This Ricoh GEN5 is 500mm long in total (head body + cable + connectors). Head cable is 400mm long.

Product Specifications

  • Dimensions: 89 x 25 x 69 mm (excluding cables)
  • Head materials: SST, Nickel alloy and Epoxy Adhesive
  • Nozzle plate surface: Coated SST
  • Number of nozzles: 4 x 320 nozzles
  • Nozzle spacing: 0.1693 mm
  • Nozzle density: up to 600 npi
  • Piezo type: D33 Stacked PZT
  • Temperature control: Integrated Heater and Thermistor
  • Operator temperature range: Up to 80° C
  • Native drop volume: 7 pl
  • Drop volume range: 7 - 35 pl
  • Drop velocity: 7 m/s
  • Jetting frequency: Up to 60 kHZ
  • Ink compatibility: UV Inks
  • Life: 100 billion actuations per nozzle

Printer Compatibility:

Agfa Jeti Mira MG2716 S/HS

 Agfa Jeti Mira MG2732 S/HS Agfa Jeti Tauro H2500

Agfa Jeti Titan HS

Agfa Jeti Titan S
CET Color Q5-1000  CET Color Q5-1000H CET Color Q5-250
CET Color Q5-250H CET Color Q5-500 CET Color Q5-500H
Docan 1212 UV  Docan FR3210 Docan FRT3116
Docan M10 Docan M6 Docan M8
Handtop HT1600UV HR4  Handtop HT1610UV FR4 Handtop HT2500UV
Handtop HT2512UV-D FR8 Handtop HT3116UV FR8 Handtop HT3200UV
Handtop HT3200UV HR8
Mimaki UJV500-160
